Stainless Steel Coiled Pipe/Tube

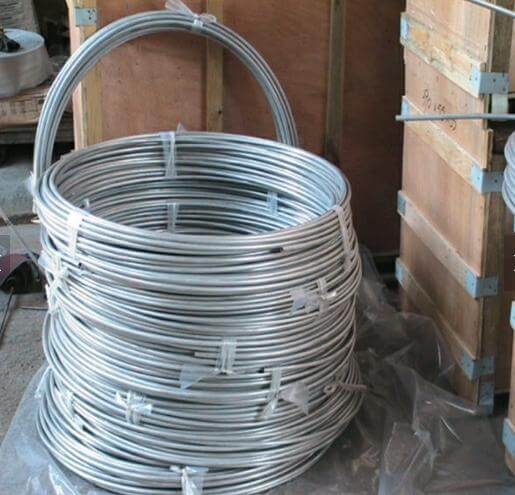

Stainless steel seamless and welded coiled tube usually for electronic use. The coiled tubes can be offered with length per coil 150meters for the seamless tube and 1500meters for the welded tubes. Length can be offered according to the requirement.

Availability:



Inquire

Standard: AISI, ASTM, DIN, EN, GB and JIS

Materials:
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347,
200series:201,202,202cu,204;
400series:409,409L,410,420,430,431,440;
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S31803904L,etc

Surface:
Bright annealed, polished,pickled

Size:
Outside diameter range from 6 to 50mm
Wall thickness range from 0.7 to 2.11mm
Length: 1 to 12 meters

Stainless Steel Coiled Pipe Stainless Steel Coiled Tube

FEEDBACK FROM CONTACT WITH US

RELATED PRODUCTS

304/304L/304H Stainless Steel Pipe/Tube

Duplex 2205 2507 Stainless Steel Pipe

253MA Stainless Steel Pipe/Tube

Stainless Steel Bend Pipe/Tube

Stainless Steel Capillary

Stainless Steel Thick Wall Pipe

439 Stainless Steel Pipe/Tube

446 Stainless Steel Pipe/Tube

409 Stainless Steel Pipe/Tube

904L Stainless Steel Pipe/Tube

317/317L Stainless Steel Pipe/Tube

347/347H Stainless Steel Pipe/Tube

309s Stainless Steel Pipe/Tube

310s Stainless Steel Pipe/Tube

321/321H Stainless Steel Pipe/Tube

316/316L/316H Stainless Steel Pipe/Tube

304/304L/304H Stainless Steel Pipe/Tube

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤0.75	5.5-7.5	≤0.06	≤0.03	3.5-5.5	16.0-18.0	-
202	≤0.15	≤1.0	7.5-10.0	≤0.06	≤0.03	4.-6.0	17.0-19.0	-
301	≤0.15	≤1.0	≤2.0	≤0.045	≤0.03	6.0-8.0	16.0-18.0	-
302	≤0.15	≤1.0	≤2.0	≤0.035	≤0.03	8.0-10.0	17.0-19.0	-
304	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤0.03	19.0-22.0	24.0-26.0	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0.03	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	16.0-18.0	2.0-3.0
321	≤0.08	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	17.0-19.0	-
630	≤0.07	≤1.0	≤1.0	≤0.035	≤0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤2.0	≤0.045	≤1.0	≤0.035	-	23.0-28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.80	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤0.03	0.19-0.22	0.24-0.26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤0.03	-	11.5-13.5	-
430	≤0.12	≤0.75	≤1.0	≤0.040	≤0.03	≤0.60	16.0-18.0	-

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤0.75	5.5-7.5	≤0.06	≤0.03	3.5-5.5	16.0-18.0	-
202	≤0.15	≤1.0	7.5-10.0	≤0.06	≤0.03	4.-6.0	17.0-19.0	-
301	≤0.15	≤1.0	≤2.0	≤0.045	≤0.03	6.0-8.0	16.0-18.0	-
302	≤0.15	≤1.0	≤2.0	≤0.035	≤0.03	8.0-10.0	17.0-19.0	-
304	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤0.03	19.0-22.0	24.0-26.0	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0.03	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	16.0-18.0	2.0-3.0
321	≤0.08	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	17.0-19.0	-
630	≤0.07	≤1.0	≤1.0	≤0.035	≤0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤2.0	≤0.045	≤1.0	≤0.035	-	23.0-28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.80	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤0.03	0.19-0.22	0.24-0.26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤0.03	-	11.5-13.5	-
430	≤0.12	≤0.75	≤1.0	≤0.040	≤0.03	≤0.60	16.0-18.0	-
