Availability: | |
---|---|

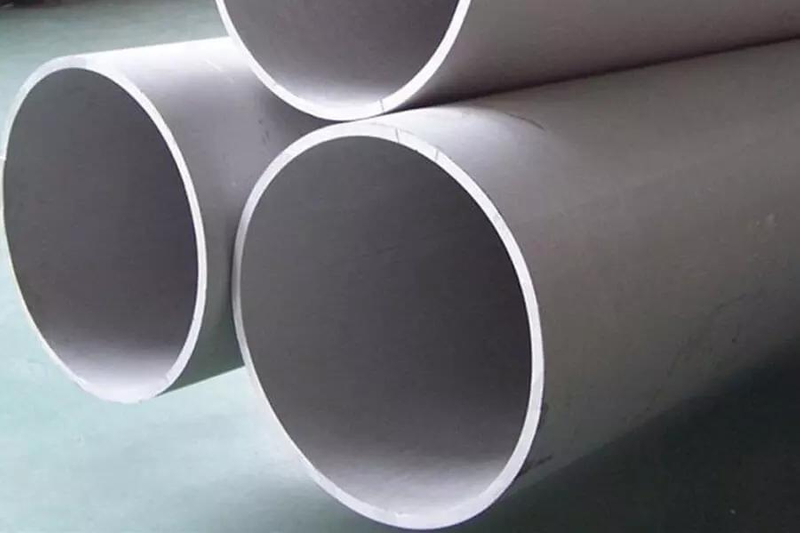

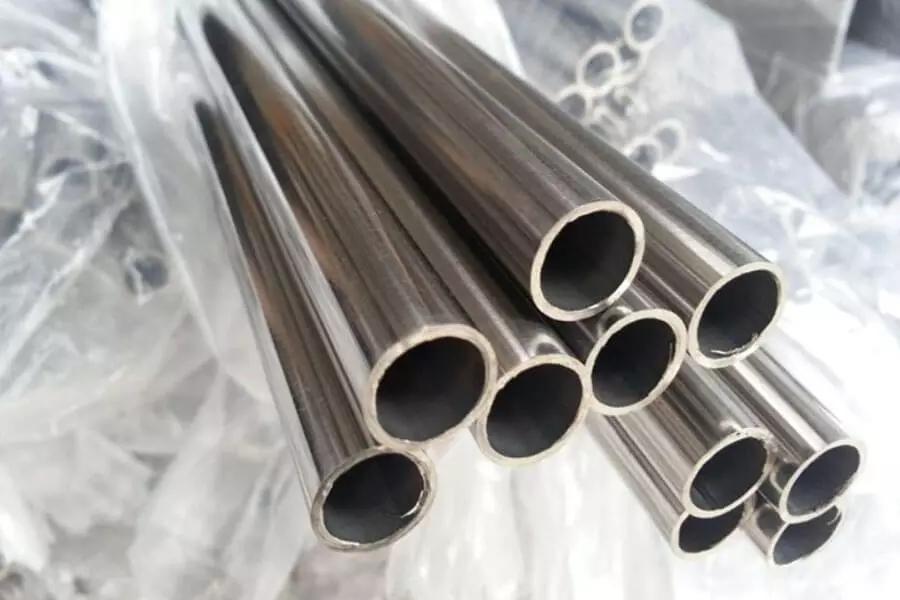

Alloy 317 and 317L are molybdenum-bearing austenitic stainless steels. Due to the molybdenum content of 3-4% 317 and 317L are more resistant to general corrosion and pitting/crevice corrosion than type 304. 317 and 317L are used in the Food, Pharmaceutical, Marine and Architecture industries.
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Alloy 317 and 317L are molybdenum-bearing austenitic stainless steels. Due to the molybdenum content of 3-4% 317 and 317L are more resistant to general corrosion and pitting/crevice corrosion than type 304. 317 and 317L are used in the Food, Pharmaceutical, Marine and Architecture industries.
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Chemical Composition Limits | |||||||||
Weight% | Cr | Ni | Mn | Si | C | Mo | P | S | Cu |
317 | 18-20 | 11-15 | 2.00 max | 1 max | 0.080 max | 3-4 | 0.045 max | 0.030 max | - |
317L | 18-20 | 11-15 | 2.00 max | 1 max | 0.030 max | 3-4 | 0.045 max | 0.030 max |
Stainless Steel | Tensile Strength (MPa) | Yield Strength (0.2% Offset) MPa | Elongation % |
317 | 515 | 205 | 35 |
317L | 515 | 205 | 40 |
Chemical Composition Limits | |||||||||
Weight% | Cr | Ni | Mn | Si | C | Mo | P | S | Cu |
317 | 18-20 | 11-15 | 2.00 max | 1 max | 0.080 max | 3-4 | 0.045 max | 0.030 max | - |
317L | 18-20 | 11-15 | 2.00 max | 1 max | 0.030 max | 3-4 | 0.045 max | 0.030 max |
Stainless Steel | Tensile Strength (MPa) | Yield Strength (0.2% Offset) MPa | Elongation % |
317 | 515 | 205 | 35 |
317L | 515 | 205 | 40 |

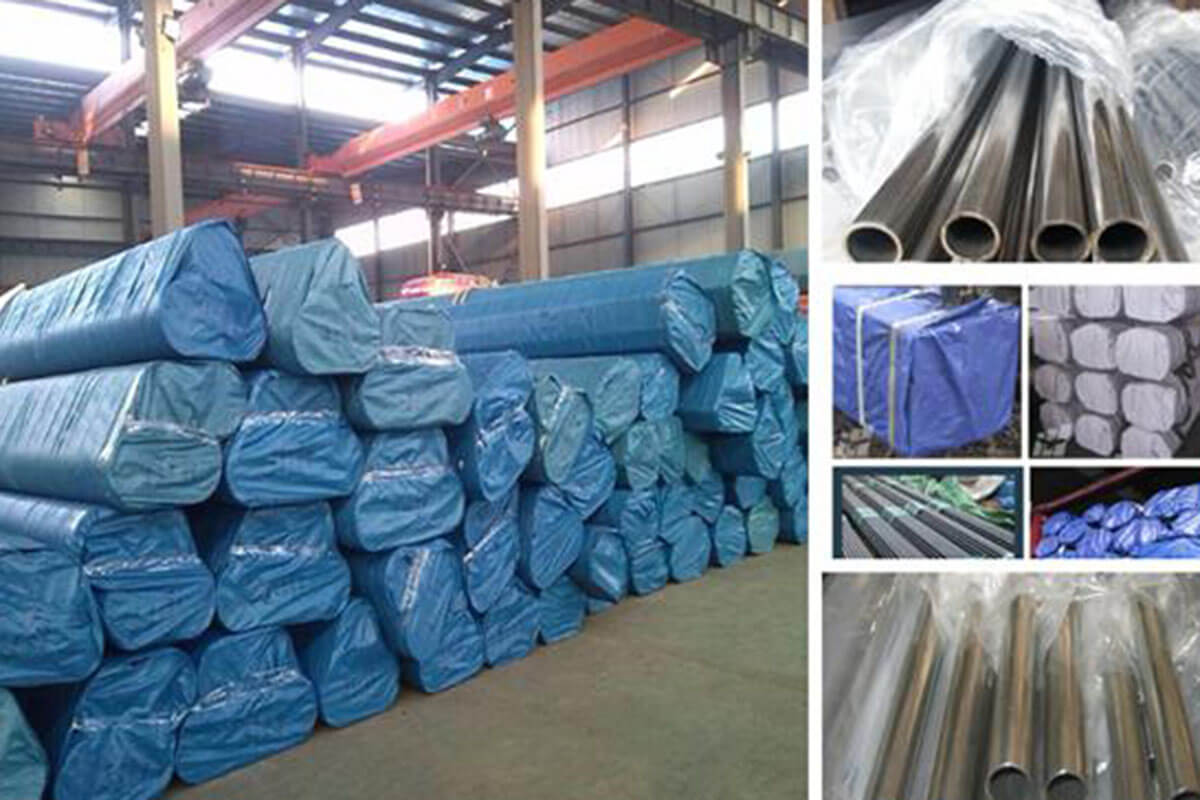

With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.

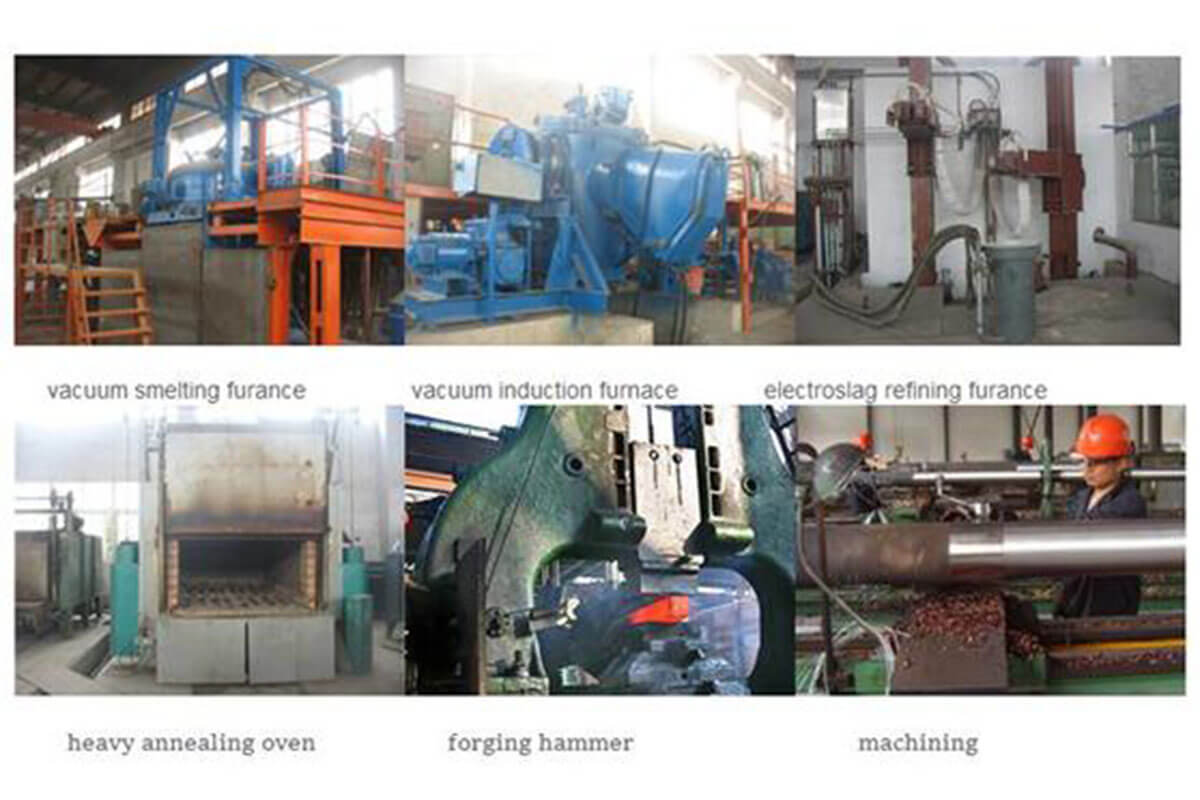

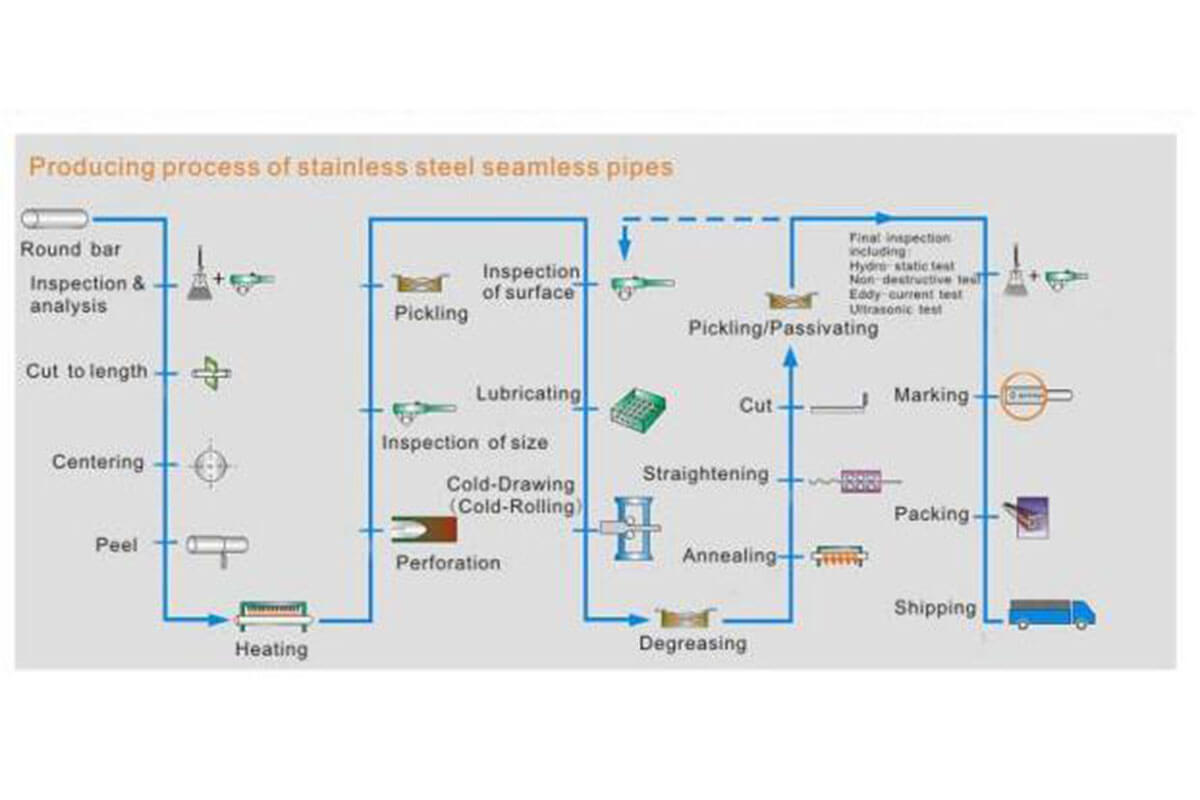

Production Flow | Inspection | Packing |
With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Production Flow | Inspection | Packing |
