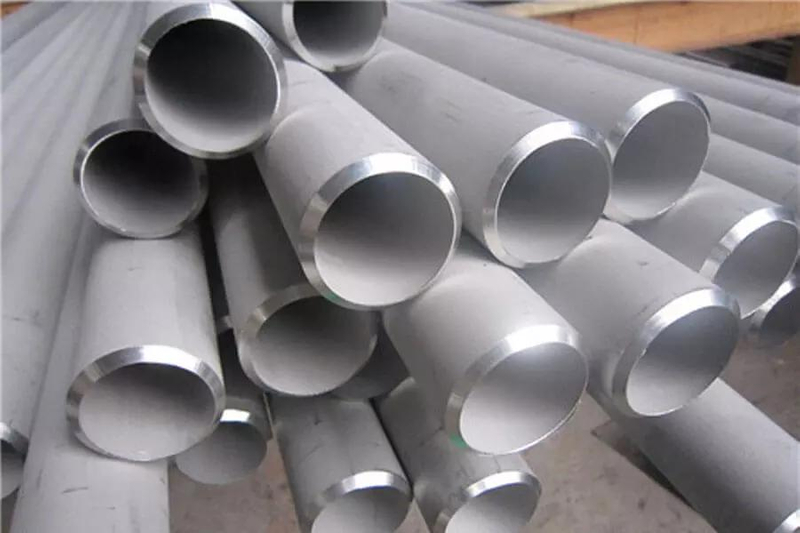

Type 304L is an extra low-carbon variation of Type 304 with a 0.03% maximum carbon content that eliminates carbide precipitation due to welding. As a result, this alloy can be used in the ”as-welded“ condition, even in severe corrosive conditions. It often eliminates the necessity of annealing weldments except for applications specifying stress relief. It has slightly lower mechanical properties than Type 304.
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Type 304L is an extra low-carbon variation of Type 304 with a 0.03% maximum carbon content that eliminates carbide precipitation due to welding. As a result, this alloy can be used in the ”as-welded“ condition, even in severe corrosive conditions. It often eliminates the necessity of annealing weldments except for applications specifying stress relief. It has slightly lower mechanical properties than Type 304.
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Chemical Composition Limits | |||||||||
Weight% | C | Si | Mn | P + S | Cr | Ni | N | Mo | Cu |
304L | 0.03 max | 1.00 max | 2.0 max | 0.040 P | 18.0 - 20.0 | 8.0 - 10.00 | 0.1 max | - | - |
304 | 0.08 max | 1.00 max | 2.0 max | 0.040 P | 18.0 - 20.0 | 8.0 - 10 | 0.1 max | - | - |
304H | 0.04-0.1 | 1.00 max | 2.0 max | 0.040 P | 18.0 - 20.0 | 8.0 - 10 | 0.1 max | - | - |
Stainless Steel | Tensile Strength (MPa) | Yield Strength (0.2% Offset) MPa | Elongation % |
304L | 485 | 170 | 40 |
304 | 515 | 205 | 40 |
304H | 515 | 205 | 40 |
Chemical Composition Limits | |||||||||
Weight% | C | Si | Mn | P + S | Cr | Ni | N | Mo | Cu |
304L | 0.03 max | 1.00 max | 2.0 max | 0.040 P | 18.0 - 20.0 | 8.0 - 10.00 | 0.1 max | - | - |
304 | 0.08 max | 1.00 max | 2.0 max | 0.040 P | 18.0 - 20.0 | 8.0 - 10 | 0.1 max | - | - |
304H | 0.04-0.1 | 1.00 max | 2.0 max | 0.040 P | 18.0 - 20.0 | 8.0 - 10 | 0.1 max | - | - |
Stainless Steel | Tensile Strength (MPa) | Yield Strength (0.2% Offset) MPa | Elongation % |
304L | 485 | 170 | 40 |
304 | 515 | 205 | 40 |
304H | 515 | 205 | 40 |
With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.

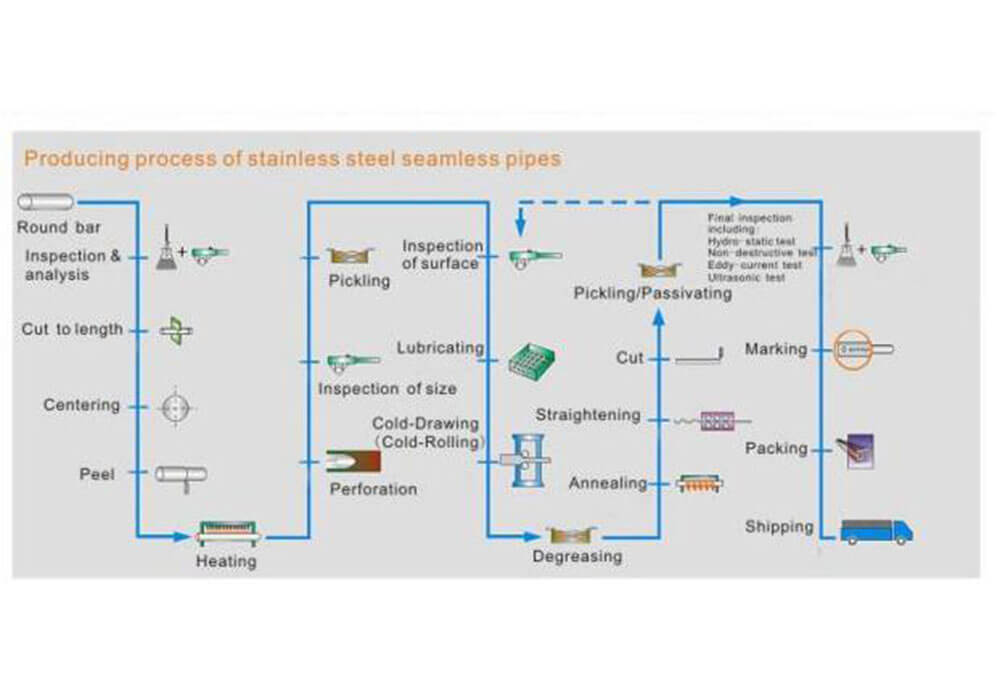

Packing | Production Flow | Inspection |
With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Packing | Production Flow | Inspection |
