Availability: | |
---|---|

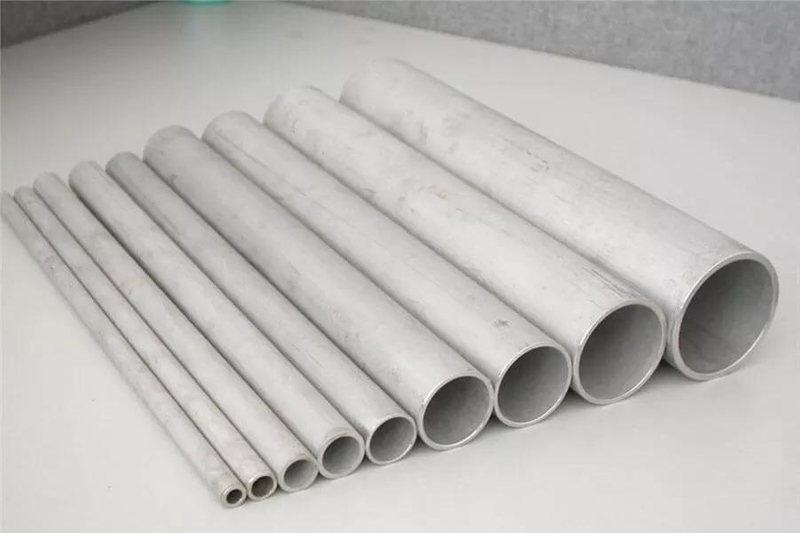

Alloy 310S Tube is an austenitic heat resistant stainless steel with good oxidation resistance and creep strength up to about 1000°C in air, suitable for scaling. Used for furnaces, burners, ignition systems, chemical and petrochemical industry.
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn\
Alloy 310S Tube is an austenitic heat resistant stainless steel with good oxidation resistance and creep strength up to about 1000°C in air, suitable for scaling. Used for furnaces, burners, ignition systems, chemical and petrochemical industry.
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn\
Chemical Composition Limits | |||||||||
Weight% | Cr | Ni | Mn | Si | C | Mo | P | S | Cu |
Alloy 310S | 24-26 | 19-22 | 2.00 max | 1 max | 0.080 max | 0.75 max | 0.040 max | 0.030 max | 0.75 max |
Alloy | Tensile Strength (MPa) | Yield Strength (0.2% Offset) MPa | Elongation % |
310S | 500-700 | 210 | 35 |
Chemical Composition Limits | |||||||||
Weight% | Cr | Ni | Mn | Si | C | Mo | P | S | Cu |
Alloy 310S | 24-26 | 19-22 | 2.00 max | 1 max | 0.080 max | 0.75 max | 0.040 max | 0.030 max | 0.75 max |
Alloy | Tensile Strength (MPa) | Yield Strength (0.2% Offset) MPa | Elongation % |
310S | 500-700 | 210 | 35 |
With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.

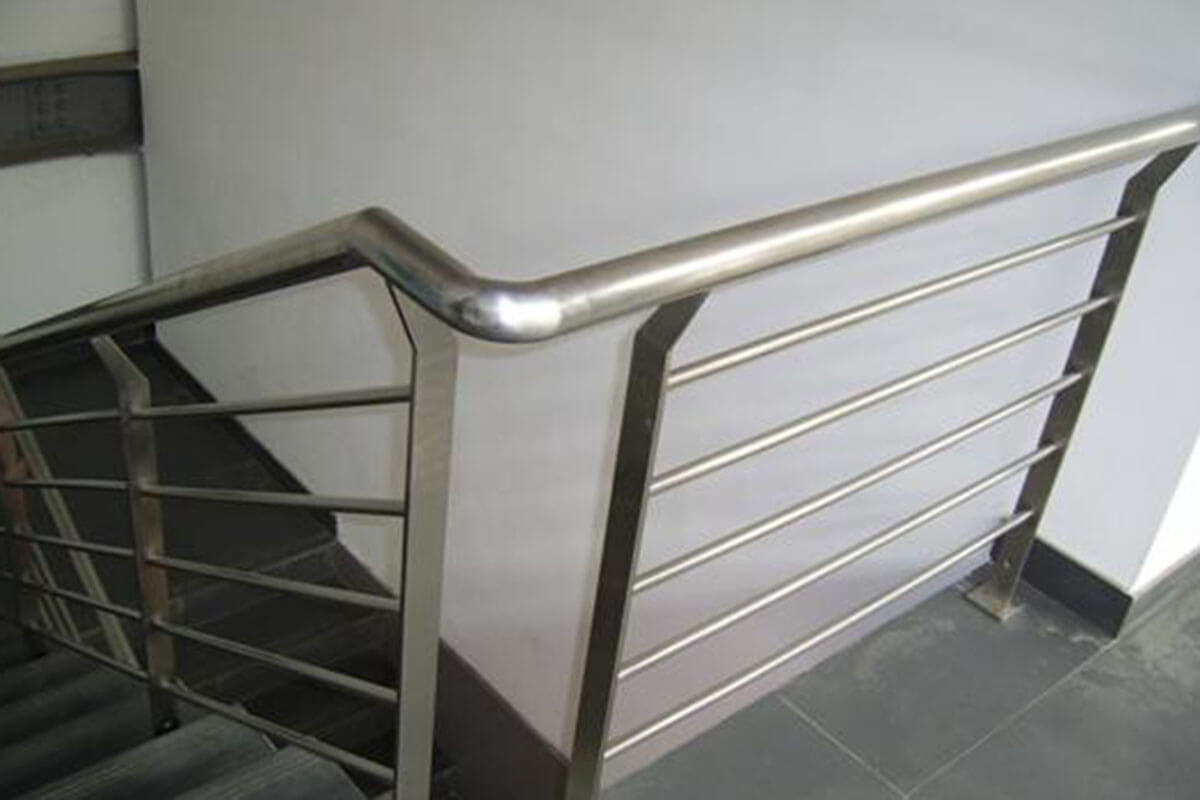

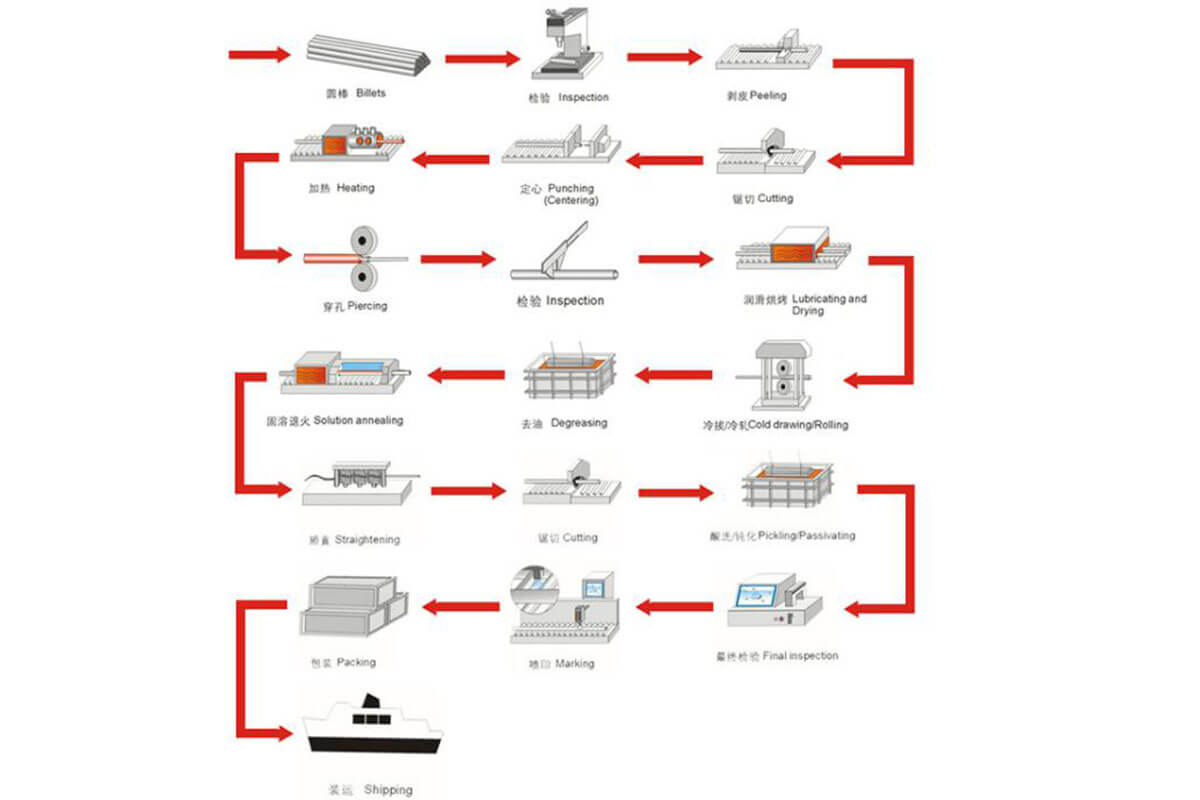

Production Flow | Inspection | Application | Packing |
With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Production Flow | Inspection | Application | Packing |
