Availability: | |
---|---|
Pipe
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Sheet:
Thickness: 0.1mm-100mm
Width: 10-2000MM
Length: 1000mm-6000mm
Finish: NO.1, 2B, BA, NO.4, 8K, SB, Hairline,
brush, polished, PVC film, Laser film, etc.
Bar:
Diameter: 5.0-500mm
Length: 1-12m
Surface: Black/Pickled/Polished/HL
Shape: Round/Square/Hex
Pipe
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Sheet:
Thickness: 0.1mm-100mm
Width: 10-2000MM
Length: 1000mm-6000mm
Finish: NO.1, 2B, BA, NO.4, 8K, SB, Hairline,
brush, polished, PVC film, Laser film, etc.
Bar:
Diameter: 5.0-500mm
Length: 1-12m
Surface: Black/Pickled/Polished/HL
Shape: Round/Square/Hex
GB/T | UNS | AISI/ASTM | ID | W.Nr | ||
015Cr20Ni18Mo6CuN | S31254 | 254SMo | F44 | 1.4547 | ||
Chemical Composition: | ||||||
Grade | % | Ni | Cr | Mo | Cu | N |
254SMO | Min | 17.5 | 19.5 | 6 | 0.5 | 0.18 |
Max | 18.5 | 20.5 | 6.5 | 1 | 0.22 | |
C | Mn | Si | P | S | ||
- | - | - | - | - | ||
0.02 | 1 | 0.8 | 0.03 | 0.01 | ||
Physical Performance: | ||||||
Heat Treatment | T*S | Y*S | El | |||
Rm N/mm2 | RP0.2N/mm2 | A5 % | ||||
Solution | 650 | 300 | 35 |
254SMO alloy is a versatile material, can be applied in many industrial fields:
Petroleum, petrochemical equipment, such as corrugated pipe in petrochemical equipment.
Flue gas desulfurization unit power plant,main parts: absorption tower, flue, stall door,inner parts, spray system tower etc..
The sea water or system, such as power plant with thin wall condensation pipe, cooling sea waterdesalination processing
equipment, not even in the water may flow device can also be used.
The desalination industry, such as salt or salt removal equipment.
The desalination industry, such as salt or salt removal equipment.
Heat exchanger, especially in the heat exchanger of chloride ion in the work environment.
GB/T | UNS | AISI/ASTM | ID | W.Nr | ||
015Cr20Ni18Mo6CuN | S31254 | 254SMo | F44 | 1.4547 | ||
Chemical Composition: | ||||||
Grade | % | Ni | Cr | Mo | Cu | N |
254SMO | Min | 17.5 | 19.5 | 6 | 0.5 | 0.18 |
Max | 18.5 | 20.5 | 6.5 | 1 | 0.22 | |
C | Mn | Si | P | S | ||
- | - | - | - | - | ||
0.02 | 1 | 0.8 | 0.03 | 0.01 | ||
Physical Performance: | ||||||
Heat Treatment | T*S | Y*S | El | |||
Rm N/mm2 | RP0.2N/mm2 | A5 % | ||||
Solution | 650 | 300 | 35 |
254SMO alloy is a versatile material, can be applied in many industrial fields:
Petroleum, petrochemical equipment, such as corrugated pipe in petrochemical equipment.
Flue gas desulfurization unit power plant,main parts: absorption tower, flue, stall door,inner parts, spray system tower etc..
The sea water or system, such as power plant with thin wall condensation pipe, cooling sea waterdesalination processing
equipment, not even in the water may flow device can also be used.
The desalination industry, such as salt or salt removal equipment.
The desalination industry, such as salt or salt removal equipment.
Heat exchanger, especially in the heat exchanger of chloride ion in the work environment.

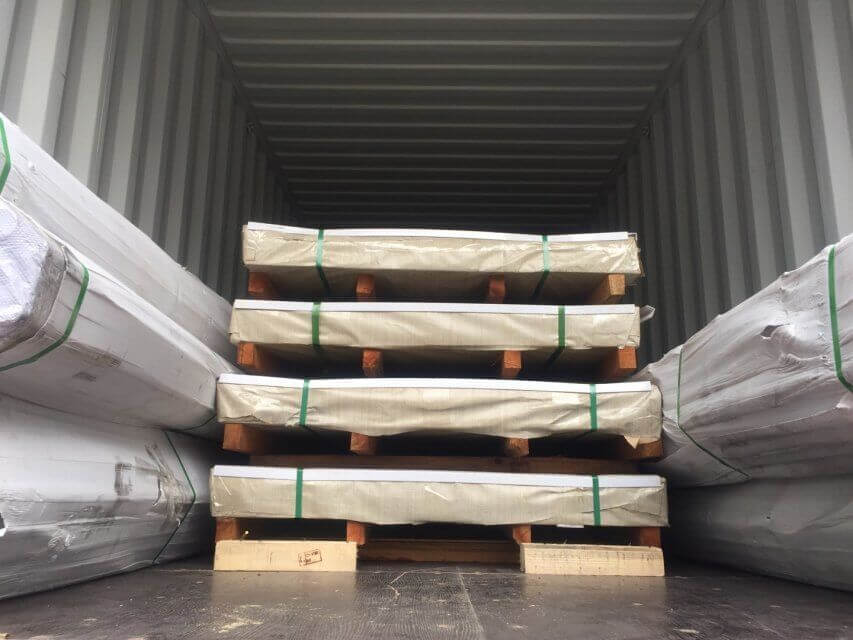

Packing:
All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Packing:
All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
