17-4PH stainless steel( 630 ) is a chromium-copper precipitation hardening stainless steel material used for applications requiring high strength and a moderate level of corrosion resistance. High strength is maintained to approximately 600 degrees Fahrenheit (316 degrees Celsius).
If you are planning to buy 17-4PH (630) bar / sheet / pipe / fittings / flange from professional manufacturers suppliers in China, please feel free to contact Wenzhou Taixin Steel Co.,Limited, equipped with productive factory, we are always at your service.
Pipe
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Sheet:
Thickness: 0.1mm-100mm
Width: 10-2000MM
Length: 1000mm-6000mm
Finish: NO.1, 2B, BA, NO.4, 8K, SB, Hairline,
brush, polished, PVC film, Laser film, etc.
Bar:
Diameter: 5.0-500mm
Length: 1-12m
Surface: Black/Pickled/Polished/HL
Shape: Round/Square/Hex
17-4PH stainless steel( 630 ) is a chromium-copper precipitation hardening stainless steel material used for applications requiring high strength and a moderate level of corrosion resistance. High strength is maintained to approximately 600 degrees Fahrenheit (316 degrees Celsius).
If you are planning to buy 17-4PH (630) bar / sheet / pipe / fittings / flange from professional manufacturers suppliers in China, please feel free to contact Wenzhou Taixin Steel Co.,Limited, equipped with productive factory, we are always at your service.
Pipe
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Sheet:
Thickness: 0.1mm-100mm
Width: 10-2000MM
Length: 1000mm-6000mm
Finish: NO.1, 2B, BA, NO.4, 8K, SB, Hairline,
brush, polished, PVC film, Laser film, etc.
Bar:
Diameter: 5.0-500mm
Length: 1-12m
Surface: Black/Pickled/Polished/HL
Shape: Round/Square/Hex
Chemical Composition: | ||||||
Grade | % | Ni | Cr | Fe | C | Mn |
17-4PH | Min | 3 | 15.5 | - | ||
Max | 5 | 17.5 | - | 0.07 | 1 | |
Si | Cu | P | S | |||
3 | ||||||
1 | 5 | 0.04 | 0.03 |
Chemical Composition: | ||||||
Grade | % | Ni | Cr | Fe | C | Mn |
17-4PH | Min | 3 | 15.5 | - | ||
Max | 5 | 17.5 | - | 0.07 | 1 | |
Si | Cu | P | S | |||
3 | ||||||
1 | 5 | 0.04 | 0.03 |
Material Alloy 17-4 PH Bar (AMS 5643)
Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D | % Reduction of Area | Rockwell C Hardness |
Cond A | - | - | - | - | 39 max |
H900 | 190 | 170 | 10 | 40 | 40-47 |
H925 | 170 | 155 | 10 | 44 | 38-45 |
H1025 | 155 | 145 | 12 | 45 | 34-42 |
H1075 | 145 | 125 | 13 | 44 | 31-38 |
H1100 | 140 | 115 | 14 | 45 | 30-37 |
H1150 | 135 | 105 | 16 | 50 | 28-37 |
Material Alloy 17-4 PH Sheet/Bar (AMS 5604)
Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D (Values are for sheet <0.1874" thick) | % Reduction of Area | Rockwell C Hardness |
Cond A | - | - | - | - | 38 max |
H900 | 190 | 170 | 5 | - | 40-47 |
H925 | 170 | 155 | 5 | - | 38-45 |
H1025 | 155 | 145 | 5 | - | 35-42 |
H1075 | 145 | 125 | 5 | - | 33-39 |
H1100 | 140 | 115 | 5 | - | 32-38 |
H1150 | 135 | 105 | 8 | - | 28-37 |
Material Alloy 17-4 PH Bar (AMS 5643)
Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D | % Reduction of Area | Rockwell C Hardness |
Cond A | - | - | - | - | 39 max |
H900 | 190 | 170 | 10 | 40 | 40-47 |
H925 | 170 | 155 | 10 | 44 | 38-45 |
H1025 | 155 | 145 | 12 | 45 | 34-42 |
H1075 | 145 | 125 | 13 | 44 | 31-38 |
H1100 | 140 | 115 | 14 | 45 | 30-37 |
H1150 | 135 | 105 | 16 | 50 | 28-37 |
Material Alloy 17-4 PH Sheet/Bar (AMS 5604)
Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D (Values are for sheet <0.1874" thick) | % Reduction of Area | Rockwell C Hardness |
Cond A | - | - | - | - | 38 max |
H900 | 190 | 170 | 5 | - | 40-47 |
H925 | 170 | 155 | 5 | - | 38-45 |
H1025 | 155 | 145 | 5 | - | 35-42 |
H1075 | 145 | 125 | 5 | - | 33-39 |
H1100 | 140 | 115 | 5 | - | 32-38 |
H1150 | 135 | 105 | 8 | - | 28-37 |

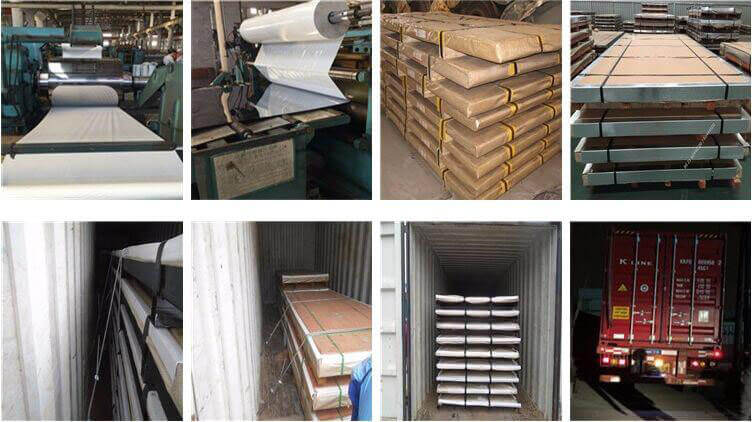

Packing:
All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Packing:
All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
