Availability: | |
---|---|
Pipe
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Sheet:
Thickness: 0.1mm-100mm
Width: 10-2000MM
Length: 1000mm-6000mm
Finish: NO.1, 2B, BA, NO.4, 8K, SB, Hairline,
brush, polished, PVC film, Laser film, etc.
Bar:
Diameter: 5.0-500mm
Length: 1-12m
Surface: Black/Pickled/Polished/HL
Shape: Round/Square/Hex
Pipe
Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn
Sheet:
Thickness: 0.1mm-100mm
Width: 10-2000MM
Length: 1000mm-6000mm
Finish: NO.1, 2B, BA, NO.4, 8K, SB, Hairline,
brush, polished, PVC film, Laser film, etc.
Bar:
Diameter: 5.0-500mm
Length: 1-12m
Surface: Black/Pickled/Polished/HL
Shape: Round/Square/Hex
Standards | Steel Grades | ||||||||
Chemical Composition % | |||||||||
C: | Mn: | Si: | P: | S: | Cr: | Mo: | Ni: | N: | |
EN / DIN | X3CrNiMoN27-5-2 - 1.4460 - 4460 | ||||||||
<0.05 | <2.0 | <1.00 | <0.035 | <0.030 | 25.0 - 28.0 | 1.30 - 2.00 | 4.5 - 6.5 | 0.05 - 0.20 | |
UNS | AISI 329 - S32900 - S 32900 - 7-Mo | ||||||||
<0.08 | <1.0 | <0.75 | <0.040 | <0.030 | 23.0 - 28.0 | 1.00 - 2.00 | 2.5 - 5.0 | - |
Mechanical and physical properties
Tensile strength: Rm = 620 - 880 MPa
Yield point: Re = > 460 MPa
Hardness < 260 HB
Elongation: A = > 20%
Modulus of elasticity, E = 200 GPa
Heat conductivity λ = 15 W ⋅ m-1 ⋅ K-1
Heat capacity cp20℃ = 500 J ⋅ kg-1 ⋅ K-1
Density: ρ = 7,80 kg/dm³
Standards | Steel Grades | ||||||||
Chemical Composition % | |||||||||
C: | Mn: | Si: | P: | S: | Cr: | Mo: | Ni: | N: | |
EN / DIN | X3CrNiMoN27-5-2 - 1.4460 - 4460 | ||||||||
<0.05 | <2.0 | <1.00 | <0.035 | <0.030 | 25.0 - 28.0 | 1.30 - 2.00 | 4.5 - 6.5 | 0.05 - 0.20 | |
UNS | AISI 329 - S32900 - S 32900 - 7-Mo | ||||||||
<0.08 | <1.0 | <0.75 | <0.040 | <0.030 | 23.0 - 28.0 | 1.00 - 2.00 | 2.5 - 5.0 | - |
Mechanical and physical properties
Tensile strength: Rm = 620 - 880 MPa
Yield point: Re = > 460 MPa
Hardness < 260 HB
Elongation: A = > 20%
Modulus of elasticity, E = 200 GPa
Heat conductivity λ = 15 W ⋅ m-1 ⋅ K-1
Heat capacity cp20℃ = 500 J ⋅ kg-1 ⋅ K-1
Density: ρ = 7,80 kg/dm³
Packing:

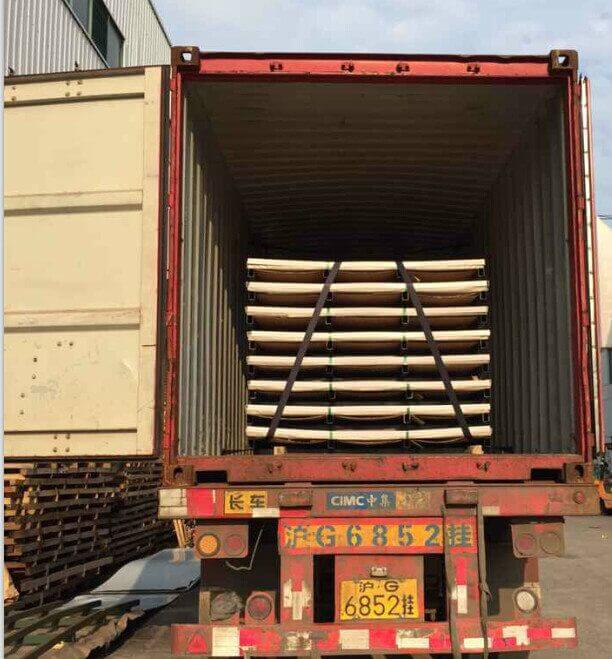

All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Packing:
All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
