Availability: | |
---|---|
Standard: ASTM, AISI, JIS, GB ,SUS
Thickness: 0.2mm~150mm
Width: 40-2000mm or as your requirement
Length: 2000-11000mm or as your requirement
Technique: hot rolled: 3~150mm thickness
cold rolled: 0.2~6mm thickness

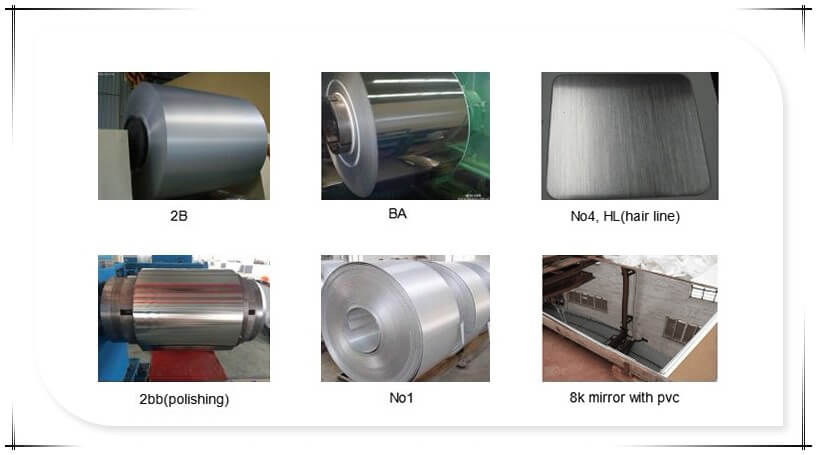

Surface:
2B, BA, No.4,HL,No.1 ,etc
Standard: ASTM, AISI, JIS, GB ,SUS
Thickness: 0.2mm~150mm
Width: 40-2000mm or as your requirement
Length: 2000-11000mm or as your requirement
Technique: hot rolled: 3~150mm thickness
cold rolled: 0.2~6mm thickness
Surface:
2B, BA, No.4,HL,No.1 ,etc
ASTM A240(Chromium and Chromium-Nickel Stainless Steel Plate,Sheet, and Strip for Pressure essels and for General Applications)
304 | C | Mn | P | S | Si | Cr | Ni | N |
WT,% | ≤0.07 | ≤2.00 | ≤0.045 | ≤0.030 | ≤0.75 | 17.5–19.5 | 8.0–10.5 | ≤0.10 |
JIS G4305(cold-rolled stainless steel plate, sheet and strip)
SUS 304 | C | Mn | P | S | Si | Cr | Ni |
WT,% | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0–20.0 | 8.0-10.5 |
Physical Properties | Metric | English | Comments |
Density | 8 g/cc | 0.289 lb/in³ |
Mechanical Properties | |||
Hardness, Brinell | 123 | 123 | Converted from Rockwell B hardness. |
Hardness, Knoop | 138 | 138 | Converted from Rockwell B hardness. |
Hardness, Rockwell B | 70 | 70 | |
Hardness, Vickers | 129 | 129 | Converted from Rockwell B hardness. |
Tensile Strength, Ultimate | 505 MPa | 73200 psi | |
Tensile Strength, Yield | 215 MPa | 31200 psi | at 0.2% offset |
Elongation at Break | 70 % | 70 % | in 50 mm |
Modulus of Elasticity | 193 - 200 GPa | 28000 - 29000 ksi | |
Poisson's Ratio | 0.29 | 0.29 | |
Charpy Impact | 325 J | 240 ft-lb | |
Shear Modulus | 86 GPa | 12500 ksi |
ASTM A240(Chromium and Chromium-Nickel Stainless Steel Plate,Sheet, and Strip for Pressure essels and for General Applications)
304 | C | Mn | P | S | Si | Cr | Ni | N |
WT,% | ≤0.07 | ≤2.00 | ≤0.045 | ≤0.030 | ≤0.75 | 17.5–19.5 | 8.0–10.5 | ≤0.10 |
JIS G4305(cold-rolled stainless steel plate, sheet and strip)
SUS 304 | C | Mn | P | S | Si | Cr | Ni |
WT,% | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0–20.0 | 8.0-10.5 |
Physical Properties | Metric | English | Comments |
Density | 8 g/cc | 0.289 lb/in³ |
Mechanical Properties | |||
Hardness, Brinell | 123 | 123 | Converted from Rockwell B hardness. |
Hardness, Knoop | 138 | 138 | Converted from Rockwell B hardness. |
Hardness, Rockwell B | 70 | 70 | |
Hardness, Vickers | 129 | 129 | Converted from Rockwell B hardness. |
Tensile Strength, Ultimate | 505 MPa | 73200 psi | |
Tensile Strength, Yield | 215 MPa | 31200 psi | at 0.2% offset |
Elongation at Break | 70 % | 70 % | in 50 mm |
Modulus of Elasticity | 193 - 200 GPa | 28000 - 29000 ksi | |
Poisson's Ratio | 0.29 | 0.29 | |
Charpy Impact | 325 J | 240 ft-lb | |
Shear Modulus | 86 GPa | 12500 ksi |
Protected by PVC and PE cover.packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
All our products are packed, stored, transported according to the international regulation.
The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Protected by PVC and PE cover.packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
All our products are packed, stored, transported according to the international regulation.
The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
