Inconel 718 is a nickel-chromium-molybdenum alloy designed to resist a wide range of severely corrosive environments, pitting and crevice corrosion. This nickel steel alloy also displays exceptionally high yield, tensile, and creep-rupture properties at high temperatures.
Chemical Composition:
Grade | % | Fe | Ni | Cr | Mo | Nb | C |
Inconel718 | Min | Rest | 50 | 17 | 2.8 | 4.75 | |
Max | 55 | 21 | 3.3 | 5.5 | 0.08 | ||
Mn | Si | S | Cu | Al | Ti | B | |
0.2 | 0.65 | ||||||
0.35 | 0.35 | 0.015 | 0.3 | 0.8 | 1.15 | 0.0006 |
Physical Performance:
Density | 8.25 g/cm³ | |||
Smelt Point | 1260-1320 | |||
H*T | T*S | Y*S | El | Hardness |
Rm N/mm2 | RP0.2N/mm2 | A5 % | HB | |
Solution | 965 | 550 | 30 | ≤363 |
Inconel 718 is a nickel-chromium-molybdenum alloy designed to resist a wide range of severely corrosive environments, pitting and crevice corrosion. This nickel steel alloy also displays exceptionally high yield, tensile, and creep-rupture properties at high temperatures.
Chemical Composition:
Grade | % | Fe | Ni | Cr | Mo | Nb | C |
Inconel718 | Min | Rest | 50 | 17 | 2.8 | 4.75 | |
Max | 55 | 21 | 3.3 | 5.5 | 0.08 | ||
Mn | Si | S | Cu | Al | Ti | B | |
0.2 | 0.65 | ||||||
0.35 | 0.35 | 0.015 | 0.3 | 0.8 | 1.15 | 0.0006 |
Physical Performance:
Density | 8.25 g/cm³ | |||
Smelt Point | 1260-1320 | |||
H*T | T*S | Y*S | El | Hardness |
Rm N/mm2 | RP0.2N/mm2 | A5 % | HB | |
Solution | 965 | 550 | 30 | ≤363 |
Standard of execution:
Form | ASTM |
Rod | B 574 |
Plate, sheet and strip | B 575 |
Seamless pipe and tube | B 622 |
Welded pipe | B 619, B 775 |
Welded tube | B 626, B 751 |
Welding fitting | B 366 |
Forged or rolled pipe flange and forged fitting | B 462 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
In what forms is Inconel 718 Available at Taixin?
Sheet
Plate
Bar

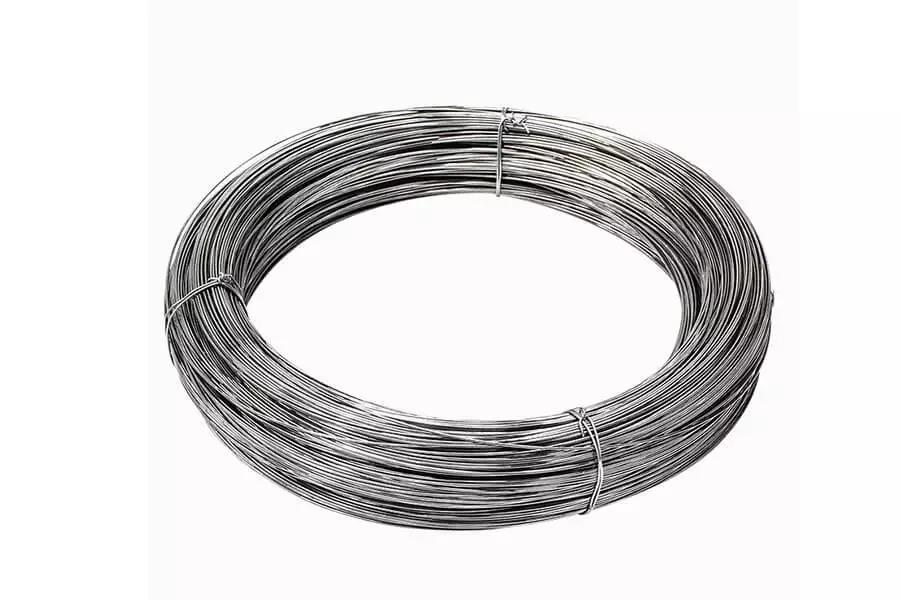

Wire
Standard of execution:
Form | ASTM |
Rod | B 574 |
Plate, sheet and strip | B 575 |
Seamless pipe and tube | B 622 |
Welded pipe | B 619, B 775 |
Welded tube | B 626, B 751 |
Welding fitting | B 366 |
Forged or rolled pipe flange and forged fitting | B 462 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
In what forms is Inconel 718 Available at Taixin?
Sheet
Plate
Bar
Wire
Characteristics of Inconel 718:
Good mechanical properties – tensile, fatigue and creep-rupture
Yield tensile strength, creep, and rupture strength properties are exceedingly high
Highly resistant to chloride and sulfide stress corrosion cracking
Resistant to aqueous corrosion and chloride ion stress corrosion cracking
High temperature resistant
Age-hardenable with a unique property of slow aging response that permits heating and cooling during annealing without the danger of cracking.
Excellent welding characteristics, resistant to postweld age cracking
Applications of Inconel 718 :
Chemical processing
Aerospace
Liquid fuel rocket motor components
Pollution-control equipment
Nuclear reactors
Cryogenic storage tanks
Valves, fasteners, springs, mandrels, tubing hangers
Well head completion equipment and blow out preventers (BOP’s)
Gas turbine engine parts
Characteristics of Inconel 718:
Good mechanical properties – tensile, fatigue and creep-rupture
Yield tensile strength, creep, and rupture strength properties are exceedingly high
Highly resistant to chloride and sulfide stress corrosion cracking
Resistant to aqueous corrosion and chloride ion stress corrosion cracking
High temperature resistant
Age-hardenable with a unique property of slow aging response that permits heating and cooling during annealing without the danger of cracking.
Excellent welding characteristics, resistant to postweld age cracking
Applications of Inconel 718 :
Chemical processing
Aerospace
Liquid fuel rocket motor components
Pollution-control equipment
Nuclear reactors
Cryogenic storage tanks
Valves, fasteners, springs, mandrels, tubing hangers
Well head completion equipment and blow out preventers (BOP’s)
Gas turbine engine parts
