Availability: | |
---|---|
Chemical Composition:
Grade | % | Ni | Cr | C | Mn | Fe | Co |
Incoloy 901 | Min | 40 | 11 | Rest | |||
Max | 45 | 14 | 0.1 | 1 | 1 | ||
Si | Cu | Mo | S | Al | Ti | P | B |
5 | 2.35 | 0.01 | |||||
0.6 | 0.5 | 7 | 0.03 | 0.35 | 3.1 | 0.03 | 0.02 |
Chemical Composition:
Grade | % | Ni | Cr | C | Mn | Fe | Co |
Incoloy 901 | Min | 40 | 11 | Rest | |||
Max | 45 | 14 | 0.1 | 1 | 1 | ||
Si | Cu | Mo | S | Al | Ti | P | B |
5 | 2.35 | 0.01 | |||||
0.6 | 0.5 | 7 | 0.03 | 0.35 | 3.1 | 0.03 | 0.02 |
Standard of execution:
Form | ASTM |
Rod | B 574 |
Plate, sheet and strip | B 575 |
Seamless pipe and tube | B 622 |
Welded pipe | B 619, B 775 |
Welded tube | B 626, B 751 |
Welding fitting | B 366 |
Forged or rolled pipe flange and forged fitting | B 462 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
Standard of execution:
Form | ASTM |
Rod | B 574 |
Plate, sheet and strip | B 575 |
Seamless pipe and tube | B 622 |
Welded pipe | B 619, B 775 |
Welded tube | B 626, B 751 |
Welding fitting | B 366 |
Forged or rolled pipe flange and forged fitting | B 462 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
Characteristic as below:
Alloy 901 has good corrosion resistance to the atmospheres normally found in jet engine operations. It has slightly lower scaling resistance than such alloy as Types 309 and 310 stainless steel.
Application:
The alloy is used for components in aircraft and gas turbines, such as turbine rotors, compressor discs, hubs and shafts, with a maximum service temperature around 1100ºF (595ºC).
In what form is Incoloy 901 available at Taixin?

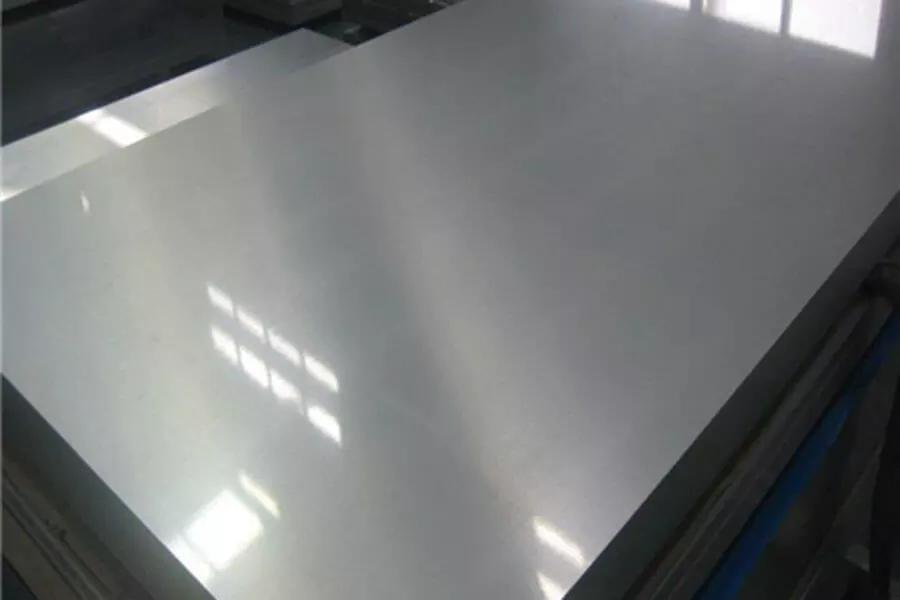

Sheet
Plate
Bar
Pipe & Tube (welded & seamless)
Fittings
Wire
Characteristic as below:
Alloy 901 has good corrosion resistance to the atmospheres normally found in jet engine operations. It has slightly lower scaling resistance than such alloy as Types 309 and 310 stainless steel.
Application:
The alloy is used for components in aircraft and gas turbines, such as turbine rotors, compressor discs, hubs and shafts, with a maximum service temperature around 1100ºF (595ºC).
In what form is Incoloy 901 available at Taixin?
Sheet
Plate
Bar
Pipe & Tube (welded & seamless)
Fittings
Wire
