Nickel 200 is a solid solution strengthened, commercially pure wrought materials with excellent mechanical properties and resistance to corrosion. It also has exceptional resistance to caustic alkalis at different concentrations and temperatures. However, the corrosion resistance is better in de-aerated acid. The alloy has low gas content and vapor pressure, and high thermal and electrical conductivities.
Nickel 200 is a solid solution strengthened, commercially pure wrought materials with excellent mechanical properties and resistance to corrosion. It also has exceptional resistance to caustic alkalis at different concentrations and temperatures. However, the corrosion resistance is better in de-aerated acid. The alloy has low gas content and vapor pressure, and high thermal and electrical conductivities.
Chemical Composition
Element | Content (%) |
Nickel, Ni | ≥ 99 |
Iron, Fe | ≤ 0.40 |
Manganese, Mn | ≤ 0.35 |
Silicon, Si | ≤ 0.35 |
Copper, Cu | ≤ 0.25 |
Carbon, C | ≤ 0.15 |
Sulfur, S | ≤ 0.010 |
Physical Properties
Properties | Metric | Imperial |
Density | 8.89 g/cm3 | 0.321 lb/in3 |
Melting point | 1435-1446°C | 2615-2635°F |
Mechanical Properties
Properties | Metric | Imperial | |
Tensile strength (annealed) | 462 MPa | 67000 psi | |
Yield strength (annealed) | 148 MPa | 21500 psi | |
Elongation at break (annealed prior to test) | 45% | 45% |
Chemical Composition
Element | Content (%) |
Nickel, Ni | ≥ 99 |
Iron, Fe | ≤ 0.40 |
Manganese, Mn | ≤ 0.35 |
Silicon, Si | ≤ 0.35 |
Copper, Cu | ≤ 0.25 |
Carbon, C | ≤ 0.15 |
Sulfur, S | ≤ 0.010 |
Physical Properties
Properties | Metric | Imperial |
Density | 8.89 g/cm3 | 0.321 lb/in3 |
Melting point | 1435-1446°C | 2615-2635°F |
Mechanical Properties
Properties | Metric | Imperial | |
Tensile strength (annealed) | 462 MPa | 67000 psi | |
Yield strength (annealed) | 148 MPa | 21500 psi | |
Elongation at break (annealed prior to test) | 45% | 45% |

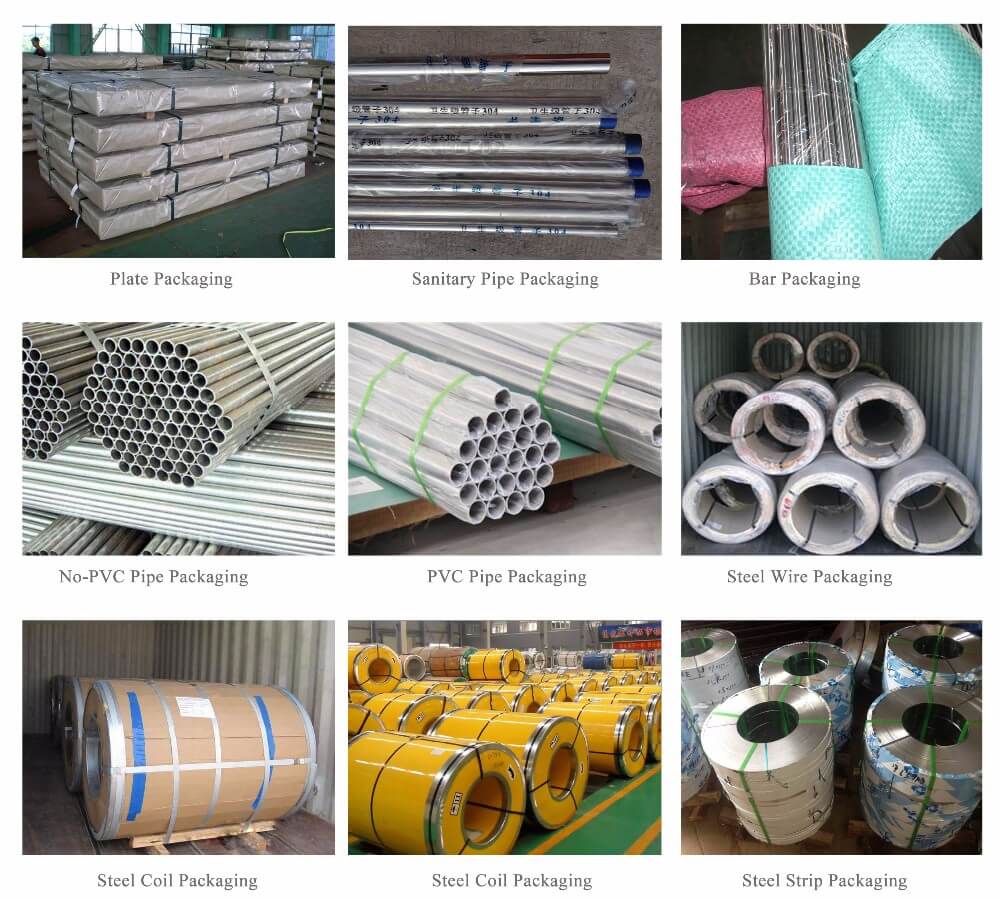

All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
All Wenzhou Taixin Steel's products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
