Availability: | |
---|---|
Chemical Composition:
Element | Min | Max |
Carbon | -- | 0.3 |
Nickel | 63.0 | 70.0 |
Iron | -- | 2.5 |
Silicon | -- | 0.5 |
Manganese | -- | 2.00 |
Sulfur | -- | 0.024 |
Copper | 28.0 | 34.0 |
Chemical Composition:
Element | Min | Max |
Carbon | -- | 0.3 |
Nickel | 63.0 | 70.0 |
Iron | -- | 2.5 |
Silicon | -- | 0.5 |
Manganese | -- | 2.00 |
Sulfur | -- | 0.024 |
Copper | 28.0 | 34.0 |
Standard of execution:
Form | ASTM |
Rod | B 574 |
Plate, sheet and strip | B 575 |
Seamless pipe and tube | B 622 |
Welded pipe | B 619, B 775 |
Welded tube | B 626, B 751 |
Welding fitting | B 366 |
Forged or rolled pipe flange and forged fitting | B 462 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
Standard of execution:
Form | ASTM |
Rod | B 574 |
Plate, sheet and strip | B 575 |
Seamless pipe and tube | B 622 |
Welded pipe | B 619, B 775 |
Welded tube | B 626, B 751 |
Welding fitting | B 366 |
Forged or rolled pipe flange and forged fitting | B 462 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
Characteristics:
Corrosion resistance in an extensive range of marine and chemical environments. From pure water to nonoxidizing mineral acids, salts and alkalis.
Good mechanical properties from subzero temperatures up to about 480C.
Good resistance to sulfuric and hydrofluoric acids. Aeration however will result in increased Resistance to neutral, alkaline and acid salts is shown, but poor resistance is found with oxidizing acid salts such as ferric chloride.
Excellent resistance to chloride ion stress corrosion cracking.
Applications:
Feed water and steam generator tubing.
Brine heaters, sea water scrubbers in tanker inert gas systems.
Sulfuric acid and hydrofluoric acid alkylation plants.
Pickling bat heating coils.
Heat exchangers in a variety of industries.
Transfer piping from oil refinery crude columns.
In what forms is Monel 400 Available at Taixin?
Sheet

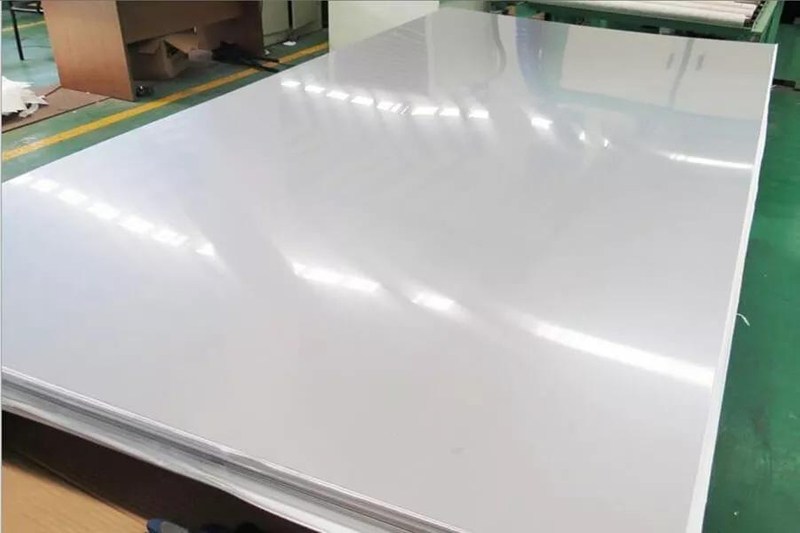

Plate
Bar

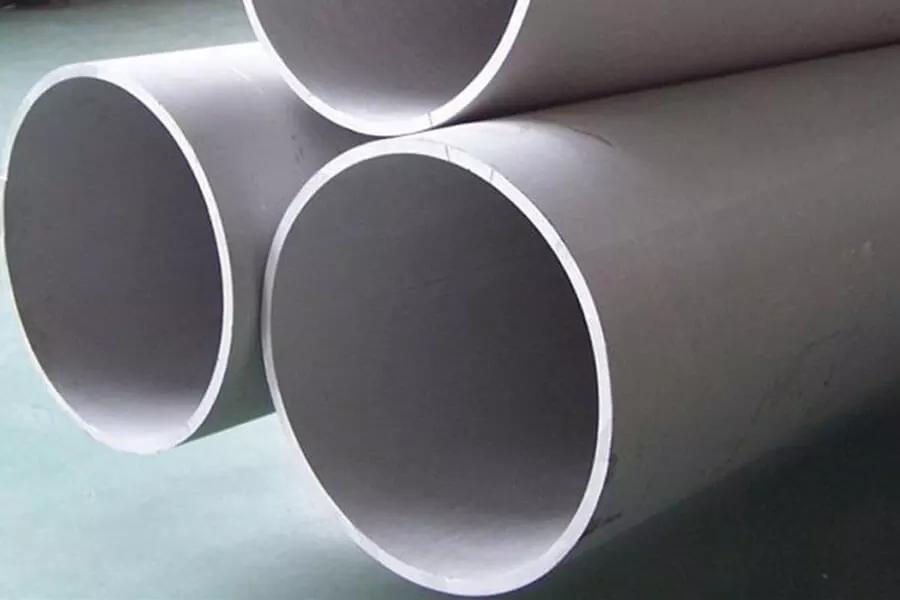

Pipe & Tube (welded & seamless)
Fittings
Wire
Characteristics:
Corrosion resistance in an extensive range of marine and chemical environments. From pure water to nonoxidizing mineral acids, salts and alkalis.
Good mechanical properties from subzero temperatures up to about 480C.
Good resistance to sulfuric and hydrofluoric acids. Aeration however will result in increased Resistance to neutral, alkaline and acid salts is shown, but poor resistance is found with oxidizing acid salts such as ferric chloride.
Excellent resistance to chloride ion stress corrosion cracking.
Applications:
Feed water and steam generator tubing.
Brine heaters, sea water scrubbers in tanker inert gas systems.
Sulfuric acid and hydrofluoric acid alkylation plants.
Pickling bat heating coils.
Heat exchangers in a variety of industries.
Transfer piping from oil refinery crude columns.
In what forms is Monel 400 Available at Taixin?
Sheet
Plate
Bar
Pipe & Tube (welded & seamless)
Fittings
Wire
