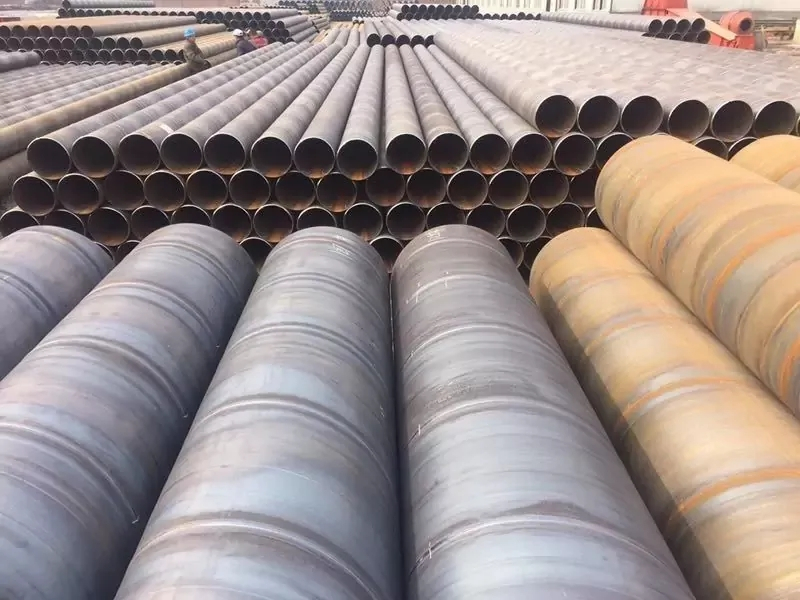

SSAW Steel pipe Spiral Weled Pipe

Submerged arc welding (SAW) is a common arc welding process.
The process is normally limited to the flat or horizontal-fillet welding positions (although horizontal groove position welds have been done with a special arrangement to support the flux).
SAW pipe is made of hot rolled coiled steel by automatic submerged arc weld under normal atmospheric temperature. All the pipes are produced according to API Spec 5L, GB/T9711.1, GB/T9711.2, ASTM A252-89 standard. These pipes mainly used in petroleum and natural gas industry to transport flammable and non-flammable liquid and steel construction.
SAW means submerged arc weld ,it can be classified into LSAW and SSAW
Availability:


Product Name  SSAW spiral steel pipe
Standard  API 5L psl1/psl2, ISO3183, DIN2458, ASTM A139, A252,   EN10219/EN10217, KS F4602, KS D3583 etc.
Sizes  8" to 138"
Thickness   4mm to 25.4mm
NDT Test  UT, RT, hydrostatic,
Beveled Edges  30DEG,(-0, +5)
Length  max.24meters,

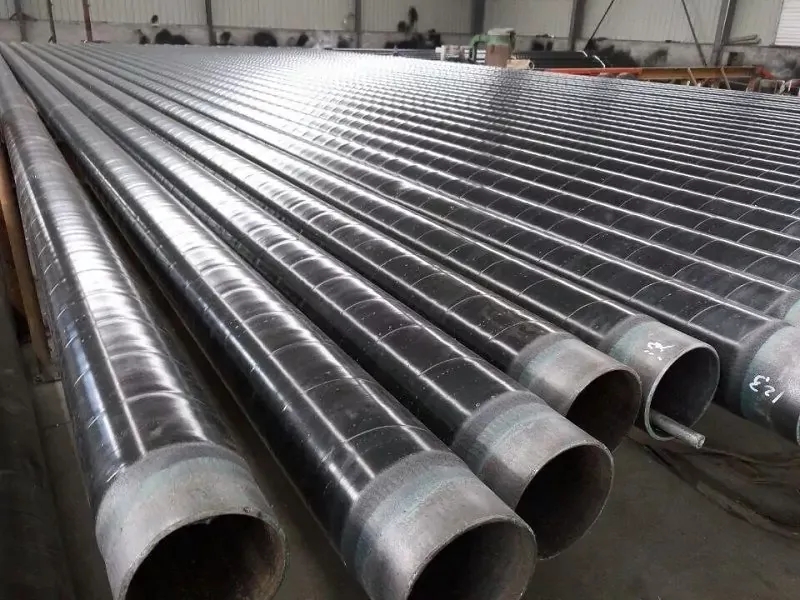

Surface treatment  Black painted/3PE/3PP/FBE/galvanizing etc.
Hot Expanded Ends  Available
Packing  Loosed PCS/nylon rope(for the coating pipes)
Transportation  by 20/40FT containers or by bulk vessels as per conditon
Pile shoe  OEM(for piling)
Mill Test Certificate   EN 10204/3.1, 3.2
Third party inspection  SGS/BV/ITS
Payment Term   TT, LC at sight, DP etc.
Application  water/fluid transportation, piling, structural supports, dredging etc.
Short Description Spiral welded pipe is manufactured from steel coil. The coil is unwound and then welded while it is being turned into the shape of the pipe. Changing the angle of the spiral and the thickness of the coil is all that is needed to change from one pipe size to another. The two sides of the double submerged arc weld penetrate the full thickness of the steel to ensure the strength of the finished pipe. Full scale tests have shown that high quality spiral welded pipe is as strong as API pipe. The strength and flexible manufacturing of spiral welded pipe make it the product of choice for a variety of applications.
H356f656772424dd9a196f7c2fe4a199cU.jpg_.webp H1332b4d40acd4e969d1d0822c87607c0x.jpg_.webp H80d42f1ac52149af987358bf25c65be3A.jpg_.webp
