304L Stainless Steel Sheet Plate

Standard: ASTM, AISI, JIS, GB ,SUS
Thickness: 0.2mm~150mm
Width: 40-2000mm or as your requirement
Length: 2000-11000mm or as your requirement
Technique: hot rolled: 3~150mm thickness
cold rolled: 0.2~6mm thickness

Availability:



Inquire

Standard: ASTM, AISI, JIS, GB ,SUS
Thickness: 0.2mm~150mm
Width: 40-2000mm or as your requirement
Length: 2000-11000mm or as your requirement
Technique: hot rolled: 3~150mm thickness
cold rolled: 0.2~6mm thickness

304L Stainless Steel Sheet Plate

FEEDBACK FROM CONTACT WITH US

Chemical Composition Limits
WT %	C max	Mn max	P max	S max	Si max	Cr	Ni	other
304L	0.03	2	0.045	0.03	1	18 - 20	8-12	---

Physical Properties	Metric	English	Comments
Density	8 g/cc	0.289 lb/in³

Mechanical Properties
Hardness, Knoop	158	158	Converted from Rockwell B Hardness Value
Hardness, Rockwell B	82	82
Hardness, Rockwell C	15	15	10% Cold-worked
Hardness, Vickers	159	159	Converted from Rockwell B Hardness Value.
Tensile Strength, Ultimate	564 MPa	81800 psi	0% Cold-worked
Tensile Strength, Yield	210 MPa	30500 psi	0% Cold-worked
Elongation at Break	58 %	58 %	In 50mm (2 in.)
Modulus of Elasticity	193 - 200 GPa	28000 - 29000 ksi
Charpy Impact	216 J	159 ft-lb

Chemical Composition Limits
WT %	C max	Mn max	P max	S max	Si max	Cr	Ni	other
304L	0.03	2	0.045	0.03	1	18 - 20	8-12	---

Physical Properties	Metric	English	Comments
Density	8 g/cc	0.289 lb/in³

304L Stainless Steel Sheet Plate

ABOUT US

PRODUCTS

APPLICATION FIELD

CONTACT US

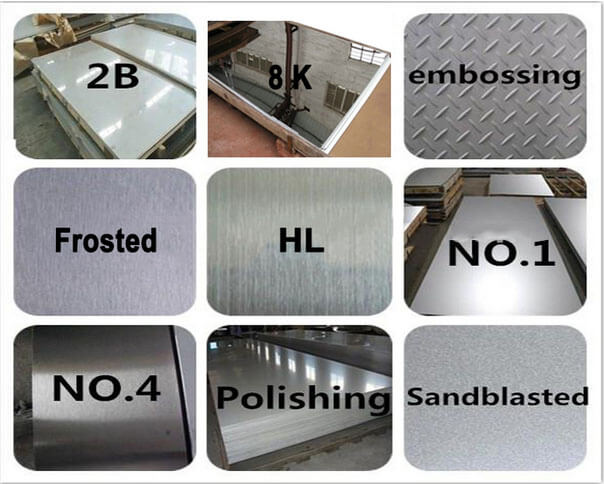

2B	The surface brightness and flatness of 2B is better than 2D then theough a special surface treatment to improve its mechanical properties,2B could nearly Satisfy comprehensive uses
No.3	Polished with abrasive belt of git#100#200#,have better brightness with discontinuous coarse stria used as inner and external omaments for building, electrical appliances and kitchen utensils etc.
No.4	Polished with abrasive belt of grit#150#180,have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtub buildings inner and extemal omaments electrical appliances kitchen utensils and food processing
BA	Cold rolled, bright annealed and skin-passed, the product have excellent brightness and food reflexivity like mirrorm kitchen apparatus, omament etc.
8K	The product have excellent brightness and prefer reflexivity can be the mirror.
HL	Polished with abrasive belt of trit#150#320 on the NO.4 finish and has continuous streaks, mainly used as buildings omaments elevators, door of building, frontal plate etc.
