Home » Products » Stainless Pipe Tube » Welded Pipe Tube » 317/317L Stainless Steel Pipe/Tube
Share to:

317/317L Stainless Steel Pipe/Tube

Alloy 317 and 317L are molybdenum-bearing austenitic stainless steels. Due to the molybdenum content of 3-4% 317 and 317L are more resistant to general corrosion and pitting/crevice corrosion than type 304.

Alloy 317 and 317L are molybdenum-bearing austenitic stainless steels. Due to the molybdenum content of 3-4% 317 and 317L are more resistant to general corrosion and pitting/crevice corrosion than type 304. 317 and 317L are used in the Food, Pharmaceutical, Marine and Architecture industries.

Outer Diameter: 1mm-1500mm
Thickness: 0.1mm-50mm
Length: 1-12m
Surface: Annealed/Pickling/Polished
Shape: Round/Square/Hex
Technique: Hot Rolled/Cold Drawn


Chemical Composition Limits

Weight%

Cr

Ni

Mn

Si

C

Mo

P

S

Cu

317

18-20

11-15

2.00 max

1 max

0.080 max

3-4

0.045 max

0.030 max

-

317L

18-20

11-15

2.00 max

1 max

0.030 max

3-4

0.045 max

0.030 max



Stainless Steel

Tensile Strength (MPa)

Yield Strength (0.2% Offset) MPa

Elongation %

317

515

205

35

317L

515

205

40


With plastic cap to protect both ends
Plastic bag wrapped outside pipe
Woven bag wrapped outside pipe

All our products are packed, stored, transported according to the international regulation.

The tubes are  wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.

Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.

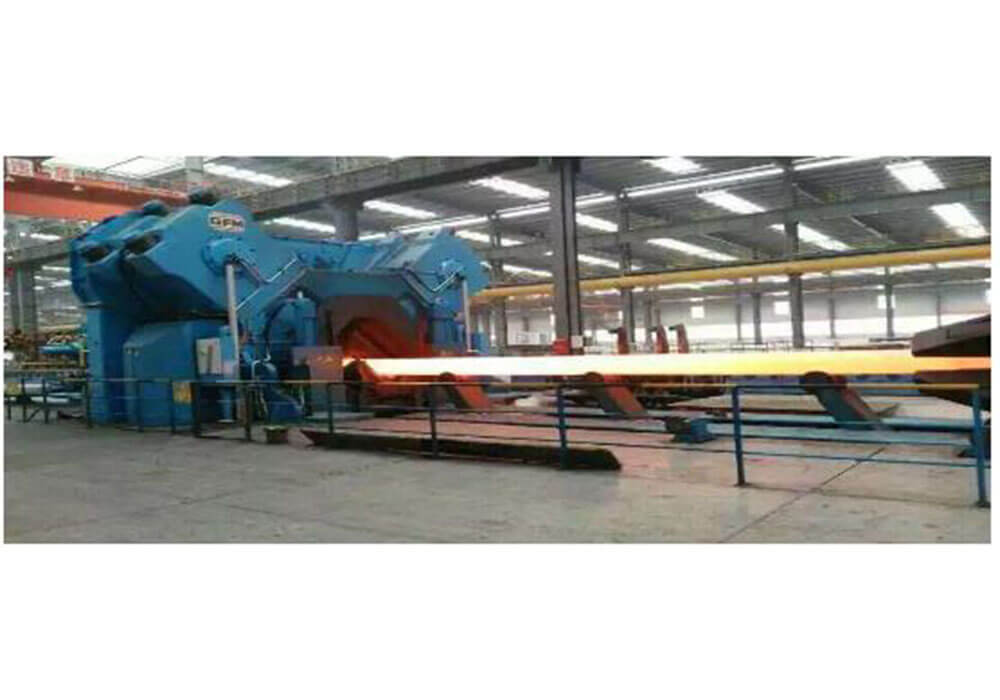

Production Flow

Production Flow

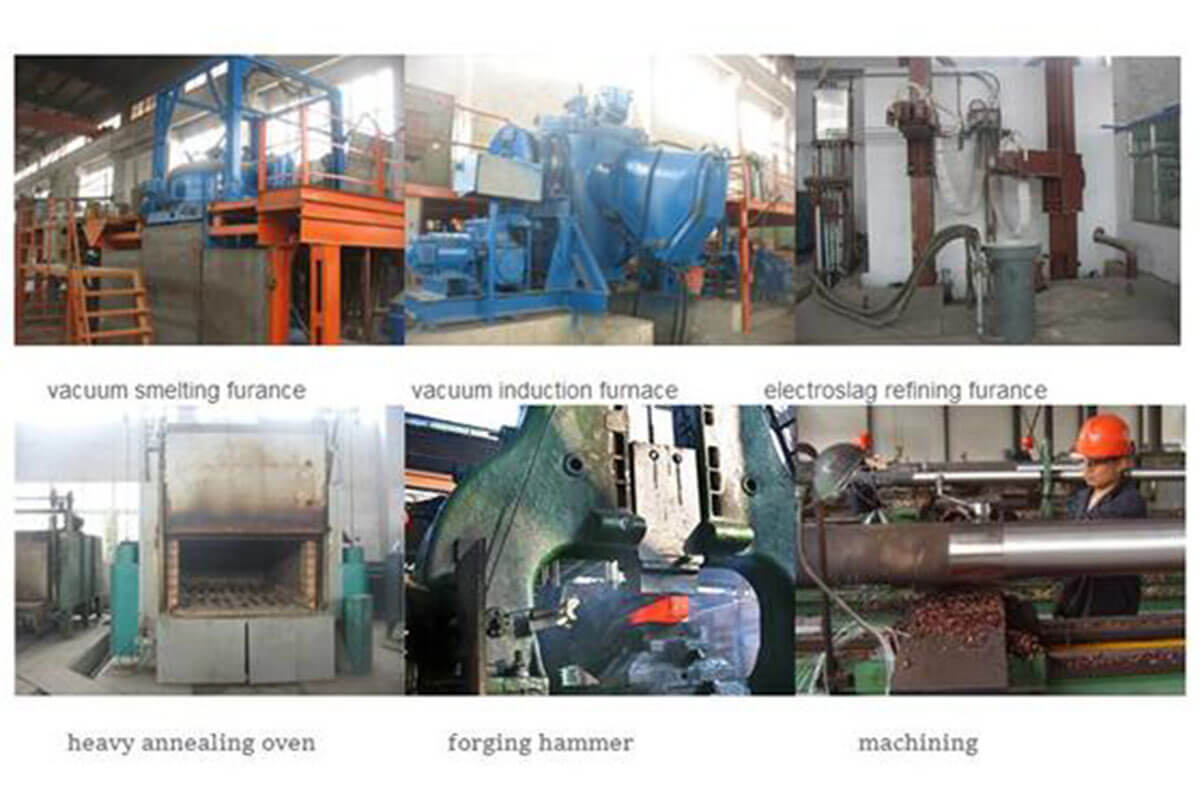

Inspection

Inspection

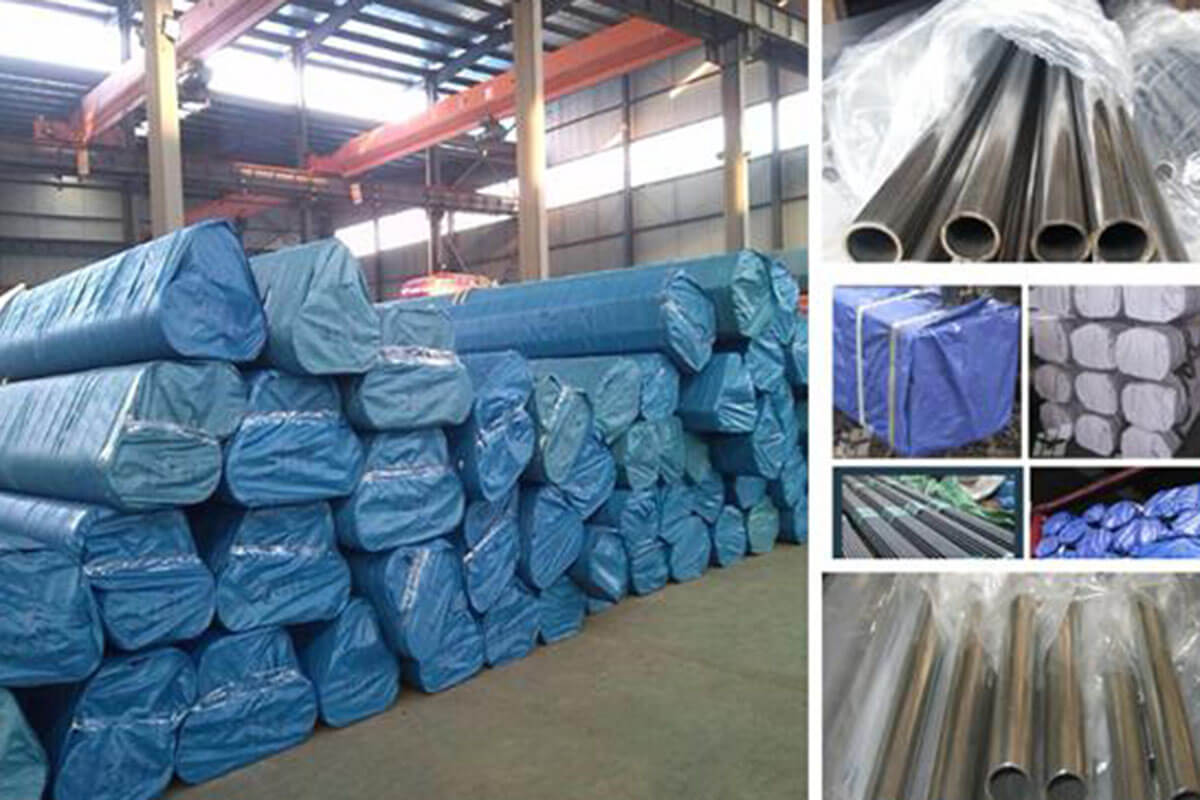

Packing

Packing
